Product Description

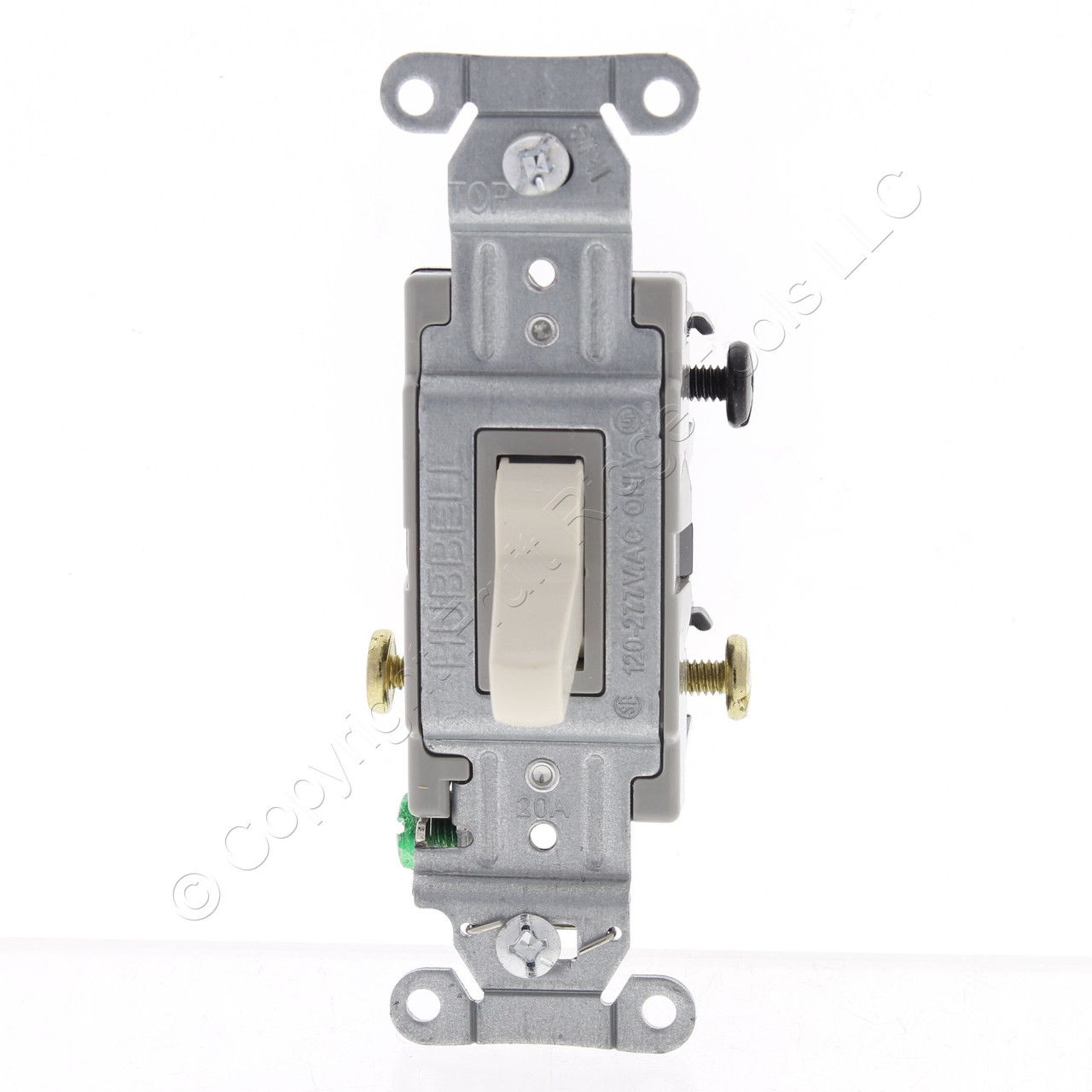

Bryant/Hubbell CS320-BLA light almond toggle switch (Bryant is a division of Hubbell). Commercial Specification Grade, 3-way, side wired, grounding, rated 20A 120/277V AC. This is a heavy duty commercial switch; don't confuse it with regular residential models when comparing prices. Designed to offer outstanding reliability and top performance in commercial settings such as: municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions (also suitable for residential installations). Each is individually packaged; packaging may differ from photo. Features include:
- AC general use snap switches are designed for controlling as permitted by the NEC, resistive, inductive, tungsten-filament, fluorescent and motor loads for AC branch lighting and appliance circuits
- Back wiring: clamp-type terminals accept up to #10 wire
- Terminal screws: combination Phillips/slotted/Robertson binding head, accepts up to #10 wire
- Approved for CU wire only
- Silver cadmium oxide contacts
- Rivetless one-piece copper alloy contact arm for excellent conductivity
- Grounding connections - green, combination Phillips/ slotted/Robertson hex head screw and automatic ground clip
- Thread cleaning captive combination Phillips/slotted/ Robertson mounting screws
- Nylon toggle
- Break-off plaster ears
MPN:
CS320BLA
Cross Reference:
CS320-2T
Color:
N/A
Amperage:
20A
Condition:
New
UPC:
781786121522
Weight:
0.20 LBS
