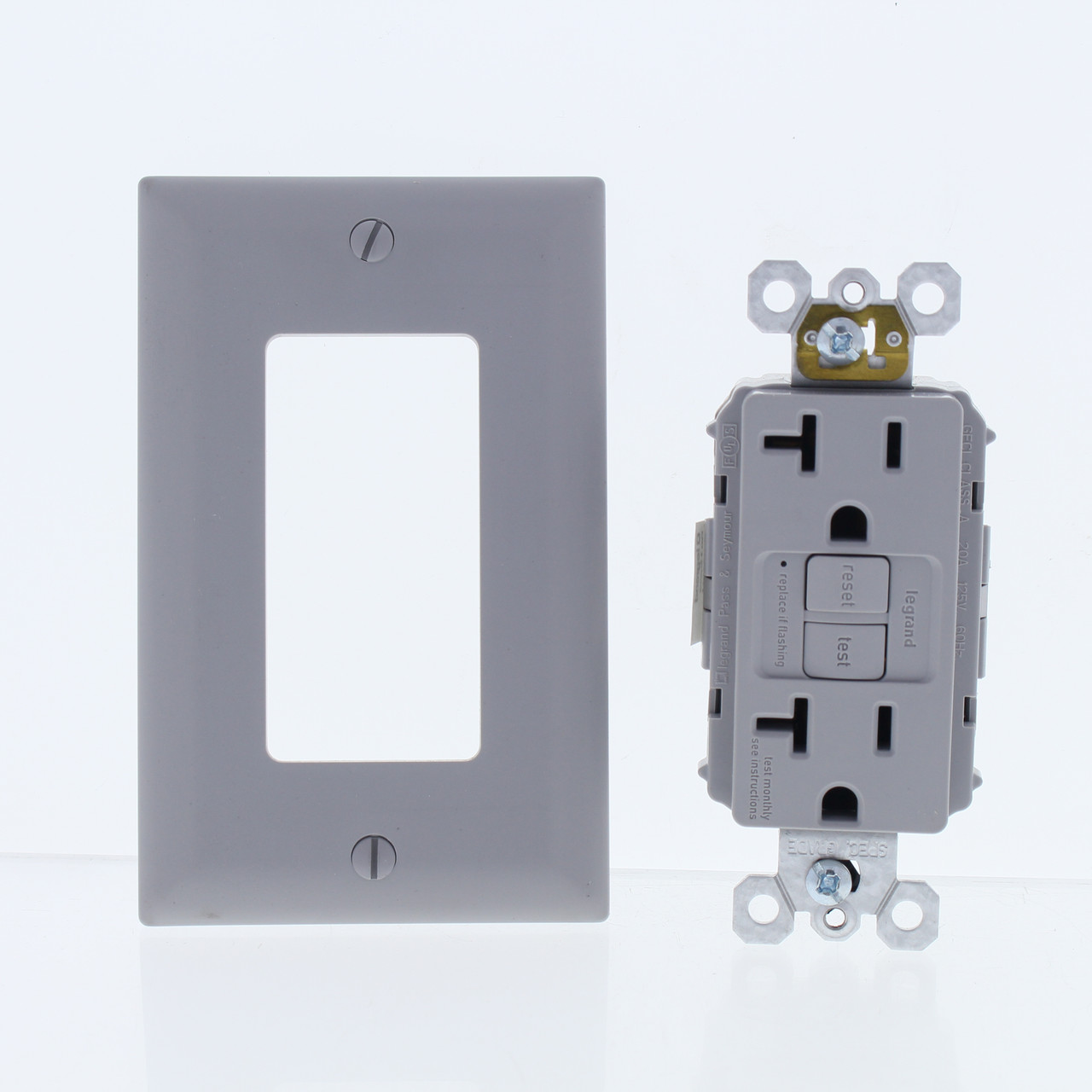

- P&S Gray PlugTail GFCI Receptacle Outlet Self-Testing 5-20R 20A 125V PT2097GRY
QTY Available to Ship:
3
Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
)
Product Description
Pass & Seymour 2097GRY gray GFCI receptacle for use with PlugTail prewiring harnesses. Please note that PlugTail Wiring Harnesses are NOT included. You must purchase the particular style that you want in order to install this outlet. The wiring harness are installed when wire is first pulled throughout the house. After the finish construction is done, the outlet is "plugged" into the PlugTail wiring harness (sold separately) which has been prewired into each box. Factory terminated devices and connectors mean that device installation is the same regardless of the skill of the installer. The UL-Listed connectors are keyed to ensure proper wiring installation into each receptacle. The connector simply snaps into the back of the device - no preparing, stripping or looping conductors, no exposed terminals to tighten or tape. The Radiant collection self-test GFCI conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected. Trademaster/Spec Grade, self-testing, NEMA 5-20R, back and side wired, rated 20A-125V at receptacle (no feed-thru capability). Each is individually packaged; packaging may differ from photo. Features include:
- Requires PlugTail wiring harness (purchased separately) for installation - you must purchase the style of wiring harness that you need for your particular installation. This outlets is compatible with the following wiring harnesses: PTRA6STR or PTRA6SOL
- No feed-thru capability to downstream receptacles - GFCI works with the existing 3-wire PlugTail connectors creating a non-feed-thru application for facility owners. At rough-in just install the same right angle connector for GFCI and receptacle openings
- Conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced.
- SafeLock protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected
- Thinner than competitors' GFCI Receptacles: leaves more room for wires in the box
- Auto-Ground clip assures a positive ground to metal box
- Prevents line-load reversal miswire: no power to the face if wired incorrectly
- Trip indicator light (red LED)
- Side or internal screw-pressure-plate back wire with #10-#14 AWG solid or stranded copper wire
- Two back-wire holes per terminal
- Ground screw has back-wire clamp for easy installation
- Mounting screws are shipped captive in the device and wall plate for easier installation
- High-impact-resistant thermoplastic construction
- Extra-long strap
- Button colors match the device face
- Dual-direction test and reset buttons
- Wallplate included
MPN:
PT2097GRY
Cross Reference:
Not Available
Color:
Gray
Amperage:
20A
Condition:
New
UPC:
785007048346
Weight:
0.35 LBS
