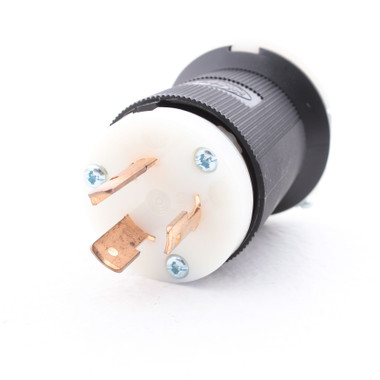

Hubbell EdgeConnect™ HBL2321ST 20A Twist Locking Connector Plug NEMA L6-20P 250V

Your Price: $11.99

QTY Available to Ship:

Quantity:

Ask a question

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Product Description

Hubbell EdgeConnect™ HBL2321ST 20A twist locking plug. EdgeConnect™ Screwless Termination system, simply insert the wire and press the plunger down. No tools are required. That connection is fool-proof and long lasting, to all but guarantee a high quality result. Industrial Specification Grade, NEMA L6-20P, 2-pole, 3-wire, grounding, rated 20A 250V. Cord grip range: .385"-.780". Terminals accommodate #18-#10 AWG. Each is individually packaged; packaging made differ from photo. Features include:

Funneled wire entry to direct conductor strands
Molded in leverage points for easy unwiring
Heavy-gauge, rust-resistant steel mounting strap
No need for screwdriver and torque wrench
Thread cleaning captive combination Phillips/slotted/ Robertson mounting screws
Uncompromising industrial-grade quality for superior performance and long service life
Terminals clearly identified to speed and simplify wiring
Heavy-duty, impact resistant construction for top performance in the environmental extremes of grueling industrial settings
One-piece .040" thick brass, high-copper content contacts with nickel-plated contact clamp type terminals
Contacts deeply seated in thick walled face
Extra-thick .050" mounting strap
Triple combo mounting and terminal screws (straight slot, Phillips, and Robertson)
Molded-in terminal identification letters
Accepts #8-#14 AWG solid or stranded copper conductors
Mechanically-secured all-brass ground path

MPN:

HBL2321ST

Cross Reference:

Not Available

Color:

N/A

Amperage:

20A

Condition:

New

UPC:

783585681962

Weight:

0.35 LBS
