Eaton Motor Starter Switch TPST TRIPLE POLE Single Throw 30A 600V AH7810UD

Your Price: $29.99

QTY Available to Ship:

Quantity:

Ask a question

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Product Description

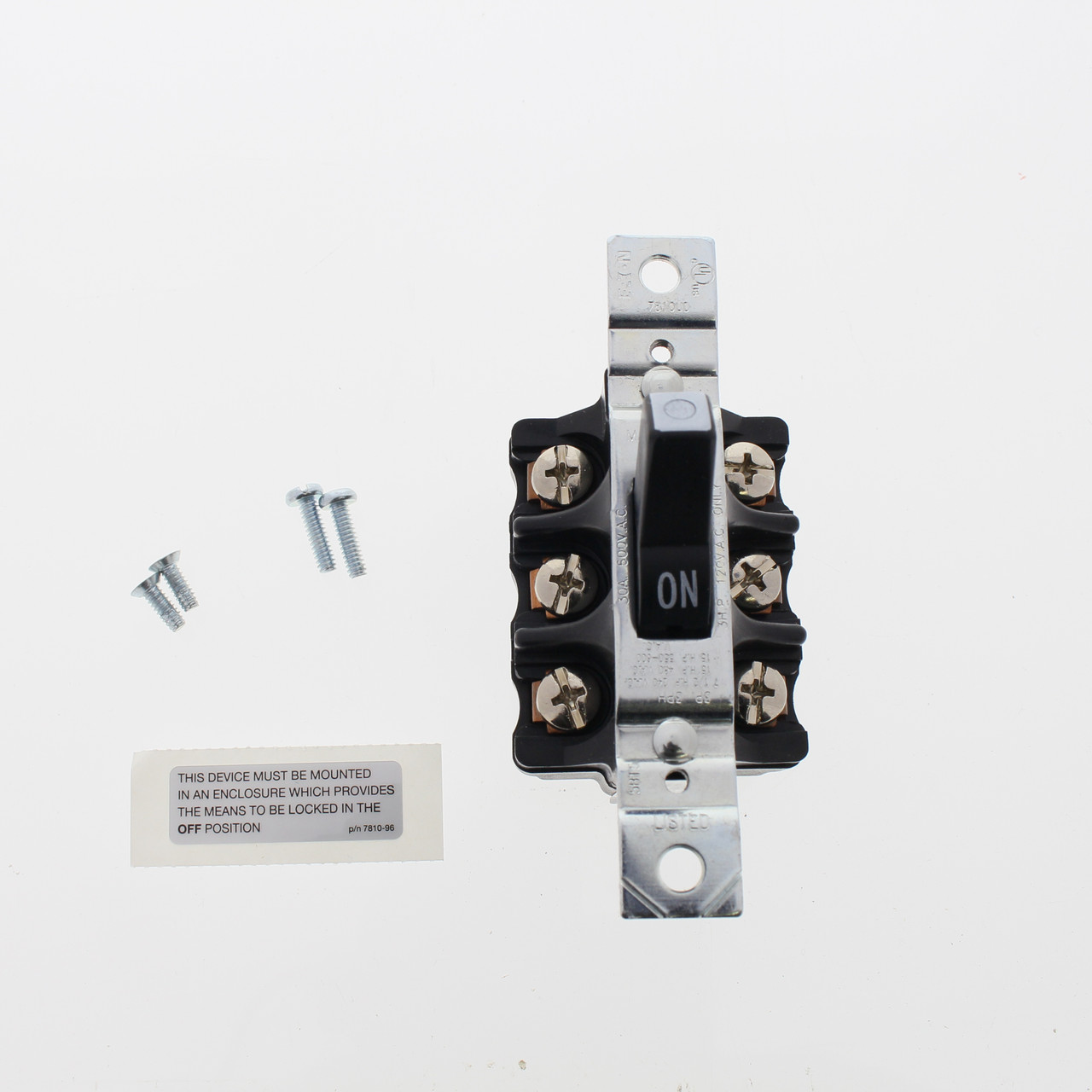

Eaton 7810UD manual motor starting switch without overload protection. Industrial Specification Grade, back & side wired, 3-pole, single throw, non-grounding, 30A 3-phase 600V Max. It is rated: 3HP@120VAC; 7.5HP@240VAC; 15HP@480VAC; and 20HP@600VAC.?Each is individually packaged. Features include:

This device must be mounted in an enclosure which provides the means to be locked in the OFF position
Positive-contact design enhances fast-make/slow-break
Silver-alloy contacts for maximum conductivity and service life
Back and side wire terminals accept up to #10 AWG solid copper wire. For stranded #8 AWG wire, remove terminal clamp and use ring terminal
Oversized #10 triple-combination terminal screws are vibration resistant
All molded parts are thermoplastic to resist impacts, chemicals, temperature, tracking and arcing
Insulating barrier between terminals provide isolation from each phase
Nickel-plated brass mounting yoke for superior corrosion resistance
Large toggle provides positive actuation, even with gloved hand

Compatible accessories:

Leviton N13NC Type 1 Steel Enclosure
Leviton N33NC Type 3R Enclosure
Leviton 84001-LOK Stainless Steel Lockout Wallplate
Leviton N13NC-T Type 1 Enclosure w/Thermoplastic Cover

MPN:

AH7810UD

Cross Reference:

Not Available

Color:

N/A

Amperage:

30A

Condition:

New

UPC:

040893006048

Weight:

0.40 LBS
