149-Foot Superior Essex White 10Gain Category 6A CMP Riser-Rated Cable 6A-272-4B

Your Price: $75.00
SKU:
SEC6A-272-4B-149

*Same Day Shipping

QTY Available to Ship:
3



Product Description

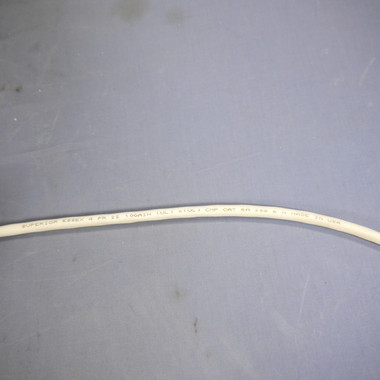

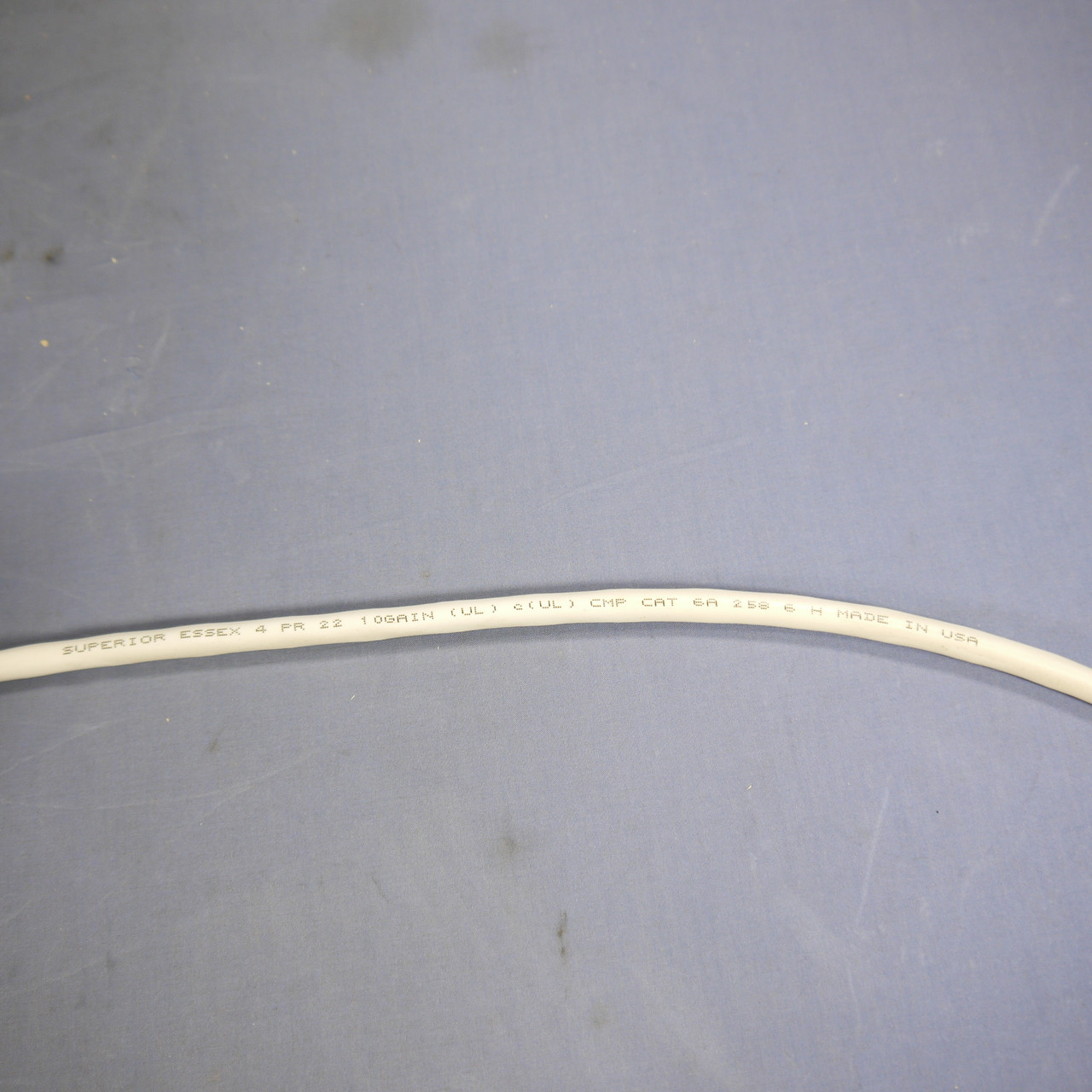

149-Foot Superior Essex 6A-272-4B white 10Gain Cat 6A CMP riser-rated cable. 10Gain? cable brings Category 6A UTP performance to a new level. This cable meets the internal and alien cross-talk performance requirements of ANSI/TIA-568-C.2 as tested in a 6 around 1 configuration. With guaranteed performance out to 500 MHz and independently verified and monitored by UL, 10Gain CAT 6A cable demonstrates superior capability for 10 Gigabit Ethernet (10GbE) and all other bandwidth intensive and legacy applications. Features include:
  • 4-Pair, 23 AWG
  • Solid annealed copper
  • FEP insulation
  • Cross-web separator
  • Flame retardant (FR), low smoke PVC jacket
  • Characteristic Impedance (Ohms) is 100 ? 15
  • Velocity of Propagation is 68%
  • 10BASE-T through 10GBASE-T Ethernet
  • Power over Ethernet (PoE) - IEEE 802.3af
  • PoE+ - IEEE 802.3at Type 1 and 2
  • ATM and token ring
  • Backward compatible to legacy protocols and applications
  • UL Verified CAT 6A: Assures consistent, worry-free performance
  • Tested to 650 MHz: Assures ample bandwidth headroom
  • Exceptional PSACR and PSAACRF (PSAELFEXT) performance: Performance assurance for 10GbE and multiple highbandwidth applications
  • CableID? alpha numeric code printed every 2 feet: Allows both ends of a cable run to be easily identifiable without the need to separately label or tone the cable
  • ColorTip? circuit identification system: Easily identifiable conductor mates even in low-light environments
  • CMP - Communications Plenum, designed for use in ducts and plenum spaces without the use of conduit and contains a fire-retardant jacket. CMP can be used in the place of CMR cable, but CMR cable cannot be used to take the place of CMP cable

MPN:
6A-272-4B
Cross Reference:
Not Available
Color:
White

Condition:
New
UPC:
DOES NOT APPLY
Weight:
13.05 LBS
Most orders ship same day if received by 2:00 pm EST Mon-Fri and 12:00 pm EST Sat. Some larger orders or items that require special handling may be shipped next business day.
$4.95 Flat Rate Shipping
