- 32-ft AFL 96-Fiber Multi-Mode Sub-Unitized Premise MicroCore® Fiber Optic Cable
QTY Available to Ship:
1
Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
)
Product Description

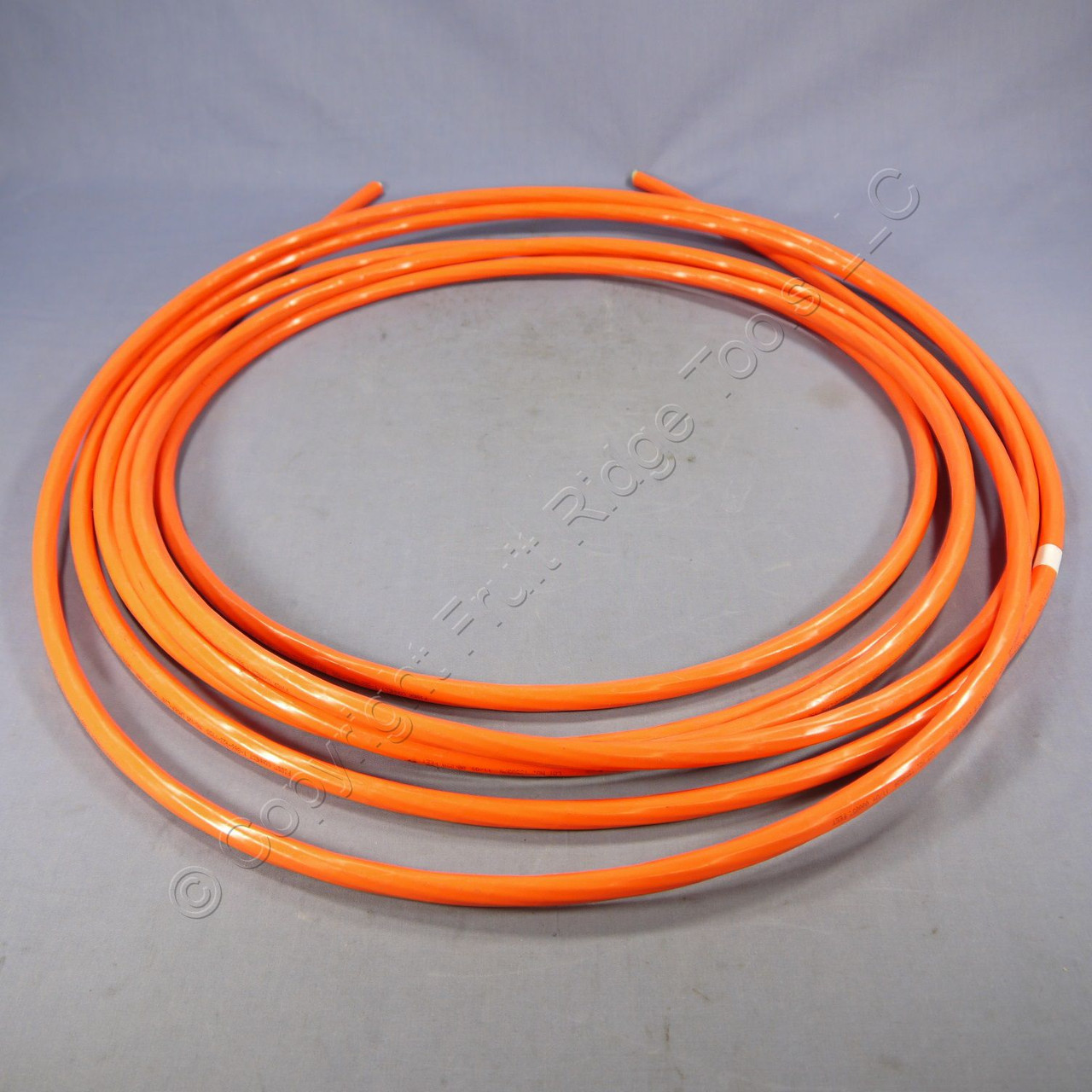

32 feet AFL 96-Fiber sub-unitized Premise MicroCore Cable. Sub-unitized Premise MicroCore Cables are ideal for high performance premise installations where space is a premium. The round cross-sectional building blocks combine to provide a tight package, while enabling high density architecture. Each 12-fiber sub-unit consists of 250 µm colored fibers and aramid strength members enclosed by a high performance jacket. The sub-units are designed to be independently routed in FMS systems. Features include:
- In-building cable runs where space is a premium
- Trunk applications where flexibility and small required bend radius are needed to route cable
- High density cable areas like Data Centers and Central Offices
- Lower cost cable runs where easy handling of tight buffered fibers not needed because cable will be spliced to factory terminated pigtails
- Trunk cables where MTP can be directly terminated on subunits
- Plenum NFPA 262 rated
- Tested to meet or exceed EIA/TIA 568-B3, Telcordia GR-409-CORE and ANSI/ICEA S-83-596
- Flexible dielectric FRP central strength member in four position
- High performance PVC jacket
- No preferential bend typically found in stacked ribbon designs
- Small diameter/superior bend performance
- All aramid tensile strength members within sub-units
- Sub-units are suitable for direct termination with round boot MTP
- Compliant to Directive 2002/95/EC (RoHS)
- Nominal Diameter: 0.52in
- Tension Installation: 150lbs
- Tension Long-Term: 45lbs
- Bending Radius Installation: 7.8in
- Bending Radius Long Term: 5.2in
- Maximum Attenuation (DB/KM) 850 NM: 3.0
- Maximum Attenuation (DB/KM) 1300 NM: 1.2
- Maximum Attenuation (DB/KM) 1550 NM: N/A
- Overfill Launch Min. Bandwidth (MHZ/KM) 850 NM : 700
- Overfill Launch Min. Bandwidth (MHZ/KM) 1300 NM : 500
- EMBc (MHZ/KM): 950
- Gigabit Ethernet min. Link Distance (Meters) 850 NM: 800
- Gigabit Ethernet min. Link Distance (Meters) 1300 NM: 550
- 10 Gigabit Ethernet min. Link Distance (Meters) 850 NM: 150
- 50/125µm multimode Laser-Link 150
- Tight Buffer Type: Bare
- AFL standard print
MPN:
GP096A31222B
Cross Reference:
Not Available
Color:
N/A
Condition:
New
UPC:
DOES NOT APPLY
Weight:
3.55 LBS
