- Signamax Black Fiber Optic 4-Module Wall Mount Enclosure w/ Access Door WFE4-B
QTY Available to Ship:
Ask a question
Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

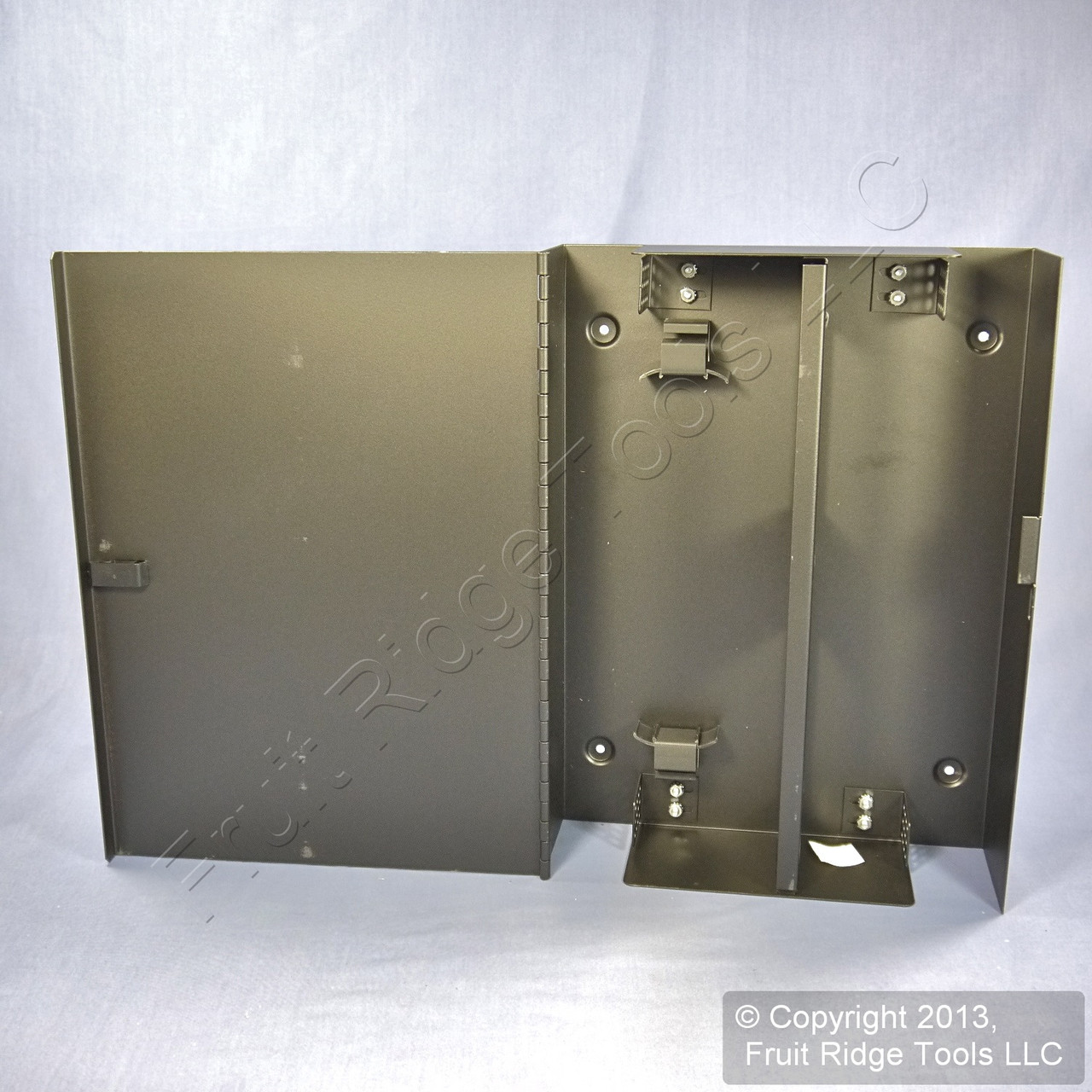

Signamax WFE4-B black fiber optic 4-module enclosure with access door. Signamax wall mount optical fiber enclosures are ideal in small installations and/or where rack and cabinet mounting is not feasible. Most popular applications include demarcation and consolidation points, horizontal mini cross-connects, centralized optical architecture transition points, etc. Physical protection of such connections and storage of fiber slack are also wall mount enclosure major functions. Enclosures accept Signamax modules to accommodate a variety of connector interfaces. The WFE4 Series accommodates from 12 to 48 fibers. Enclosures and connector modules are ordered separately. Modular design of Signamax optical fiber adapter plates allows creating flexible connection patterns based on 6-, 8-, 12-, 16- and 24-fiber ST, SC, LC and MT-RJ connector plates, which can be arranged in 4-adapter groups in any available connector combination. Adapter plates mount easily by means of plunger locks ("pushpins"). All enclosures feature front access hinged door. Internal cable anchor points and fiber slack management mechanisms ensure reliable cable fixing, safe cable/fiber tension and bend radii. Steel case and high-impact black epoxy-powder anticorrosive paint provide excellent protection of optical fiber connections. Each is individually packaged; packaging may differ from photo. Features include:
- Termination density - 12 to 96 optical fibers
- Adapter plates mount easily by means of plunger locks
- Modular adapter plates
- Fiber slack management mechanisms
- Internal cable anchor points
- High-impact black epoxy-powder anticorrosive paint
- Steel case
- 15"h X 10"w X 3.5"d
