- Leviton Black Power Over Ethernet Midspan 6 Port Managed Panel PoE 100-M3006-1UB
QTY Available to Ship:
127
Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
)
Product Description

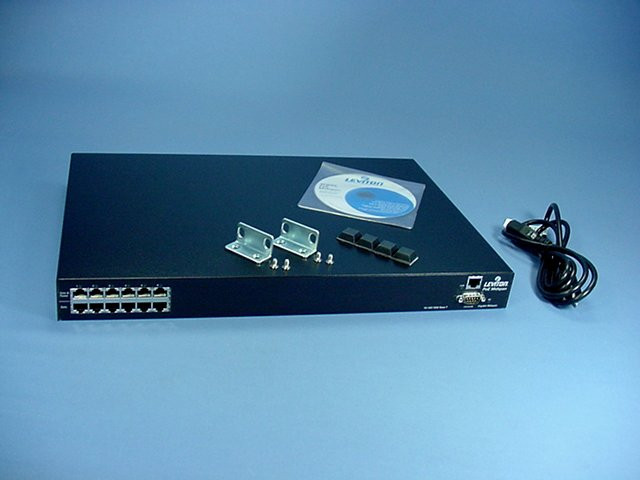

Leviton 100-M3006-1UB black 6-Port PoE Midspan adds 48 VDC to unused (non-data) wires in standard Cat 5/5E/6 Ethernet Cable, delivering both data and power to the terminal. Please note this item is not a repeater and does not amplify the Ethernet data signal and does not have a on/off switch. Features include:
- Supports 10/100mbps devices
- IEEE 802.3af compliant
- Power distribution over CAT 5/5e/6 LAN infrastructure
- Interlocking feature connects multiple units and detects PoE-ready devices
- Port status indicators
- Universal range power input
- Protects non-PoE terminals
- Maybe wall/bench mounted using rear side holes
- Voltage Required: AC 90-264 V
- Power Output Connectors Details 6 x RJ-45
- Output Voltage: 48 V
- Power Capacity: 100 Watt
- Power Provided: 100 Watt
- Frequency Required: 47 - 63 Hz
- Form Factor: rack-mountable
- Voltage Provided: 48 V
- Output Connector: Type RJ-45
- Output Connector: Qty 6
- Power Device Features: LED indicators, overload protection, short-circuit protection
- Remote Management Protocol: SNMP 3
- Connector Type: 9 pin D-Sub (DB-9)
- Depth: 11.9 in
- Width: 17 in
- Height: 1.7 in
- Weight: 8.82 lbs
- Connector: Type RJ-45
MPN:
100-M3006-1UB
Cross Reference:
Not Available
Color:
Black
Condition:
New
UPC:
078477326824
Weight:
10.20 LBS
