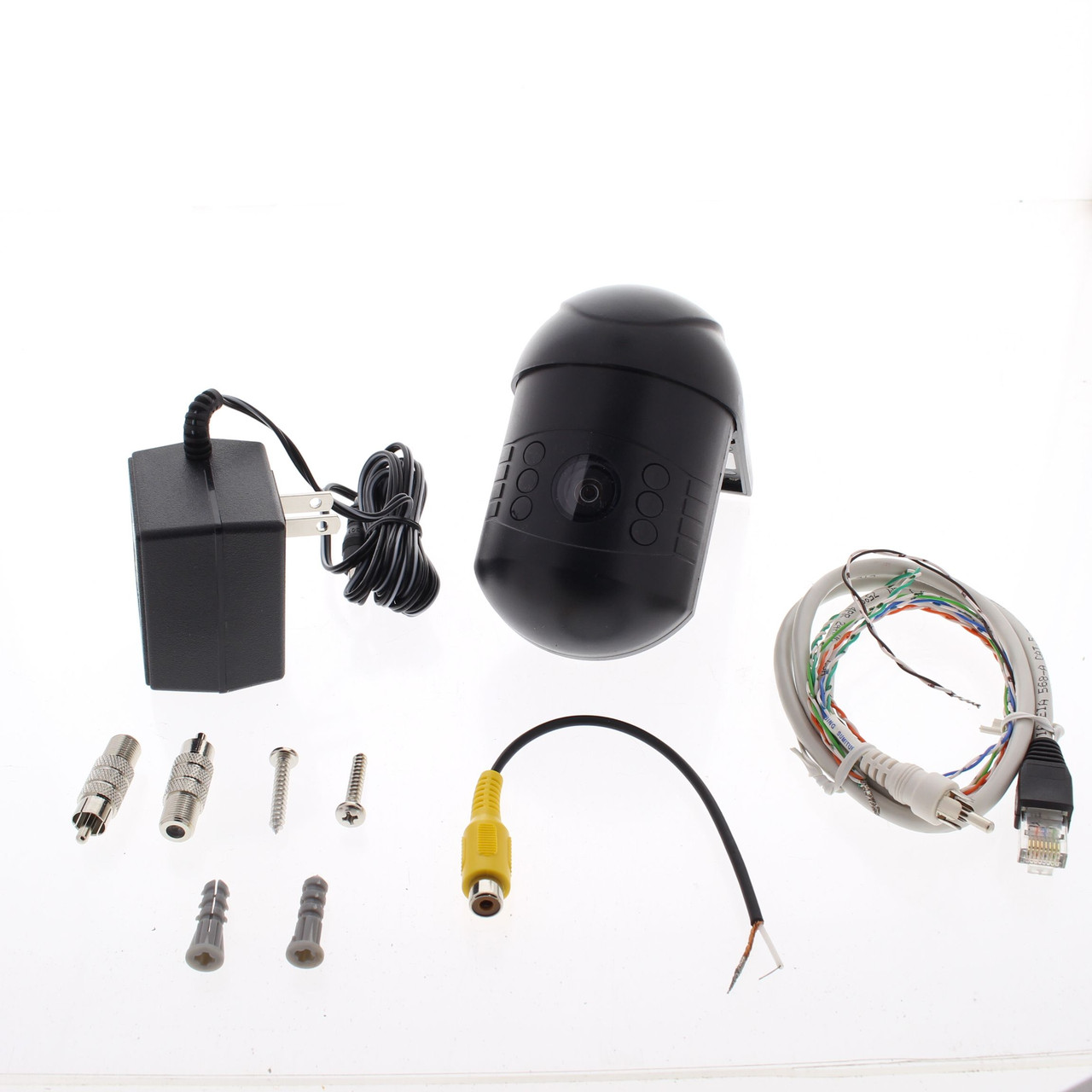

Leviton 48213-ECC Dome Style outdoor CCD DSP Color Camera with audio. Features include:
- Allows monitoring of front doors, back yards, and anywhere an extra eye is desirable
- Designed to withstand temperature and environmental extremes when mounted in a sheltered location such as under an eave or overhang and away from direct exposure to rain and snow
- Wide-angle color video camera for use in a variety of lighting conditions - reverts to black and white in low-light settings
- Manual tilt-and-pan bracket assembly provides fast installation and manual aiming
- Requires one coaxial cable and one Cat 5 or 5e cable for output - can be powered from the Leviton SMC panel with a power distribution module or with the provided transformer if power is available nearby
- Can be wired alone for use with a dedicated monitor or with up to 4 other cameras and a sequencer such as the Leviton 48213-CVS Sequencer for use in a network system. See the wiring diagrams below for some examples of camera installations. Please note other components in the wiring diagrams are sold separately
- Power: 12 VDC 55mA typical 70mA max.
- CCD imager: 1/3" 310 TV lines, NTSC with S/N ratio 38 dB min.
- Minimum illumination: 10 lux
- Lens: 3.5mm with swivel mount, adjustable focus
- Output: electronically balanced
- Transmission Bandwidth: 50 M Hz @-3 dB
- Transmission Total Harmonic Distortion: -75 dBc
- Transmission Slew Rate: 800 V/us
