- Gray Cat 6 Snap-In Modular Data Jack 110 Style 8-Position RJ45 PLUS Wallplate
QTY Available to Ship:
585
Product Description

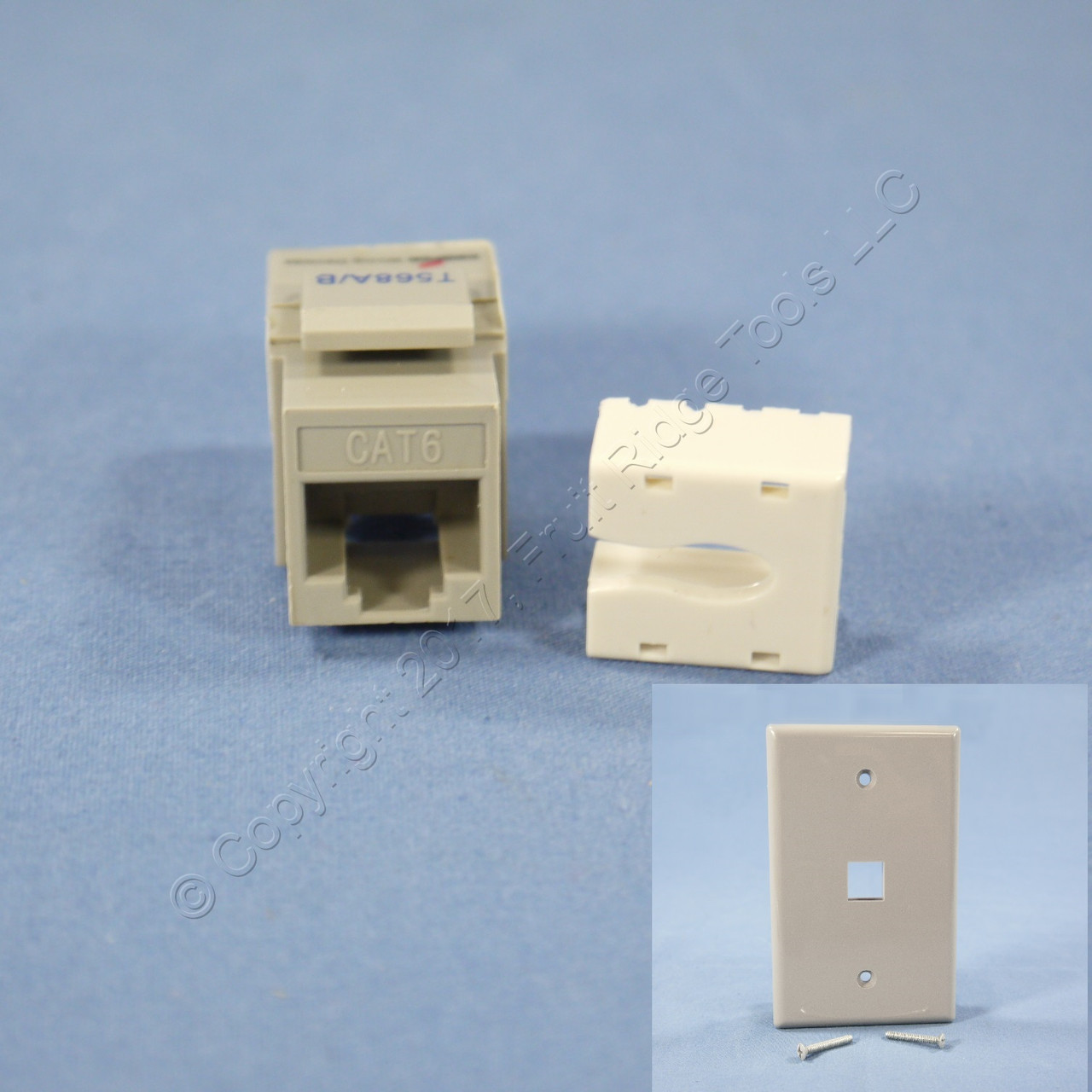

Cooper 5546-6GY gray modular 110 Style RJ45/RJ46 Category 6 snap-in jack. An 8-conductor, 8-position jack for high-speed LAN applications. Each is individually packaged; packaging may differ from photo. Features include:
- 650 MHz ANSI/TIA/EIA/568A or B-wiring
- 110 style modular jack
- 8-position, 8-conductor for high-speed LAN applications up to 1000 Mbps
- Full backward compatibility with Category 5 applications
- Spring wire contacts are highest quality phosphor bronze, plated with 50 microinches of gold over 100 microinches of nickel for lowest contact resistance and maximum life
ALSO INCLUDED Cooper 5510GY-MSP
Cooper 5510GY-MSP gray 1-port 110 Style mid-size thermoplastic wallplate. Cover measures 3.125"W x 4.875"H; 3/8" larger than a standard plate in both directions for use with larger volume outlet boxes or to hide wall irregularities. Flush mounted design that accepts 110 style snap-in modules for your audio, video, and telecommunications needs. Can be mounted to recessed wall boxes and brackets for a low profile look; also attaches to surface mount wiring boxes. Includes color matching mounting screws. Each is individually packaged; packaging may differ from photo.MPN:
5546-6GY
Cross Reference:
Not Available
Color:
N/A
Condition:
New
UPC:
N/A
Weight:
0.25 LBS
