EATBR2020B100-EA-SDB3-B

Your Price: $129.99

QTY Available to Ship:

Quantity:

Ask a question

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Product Description

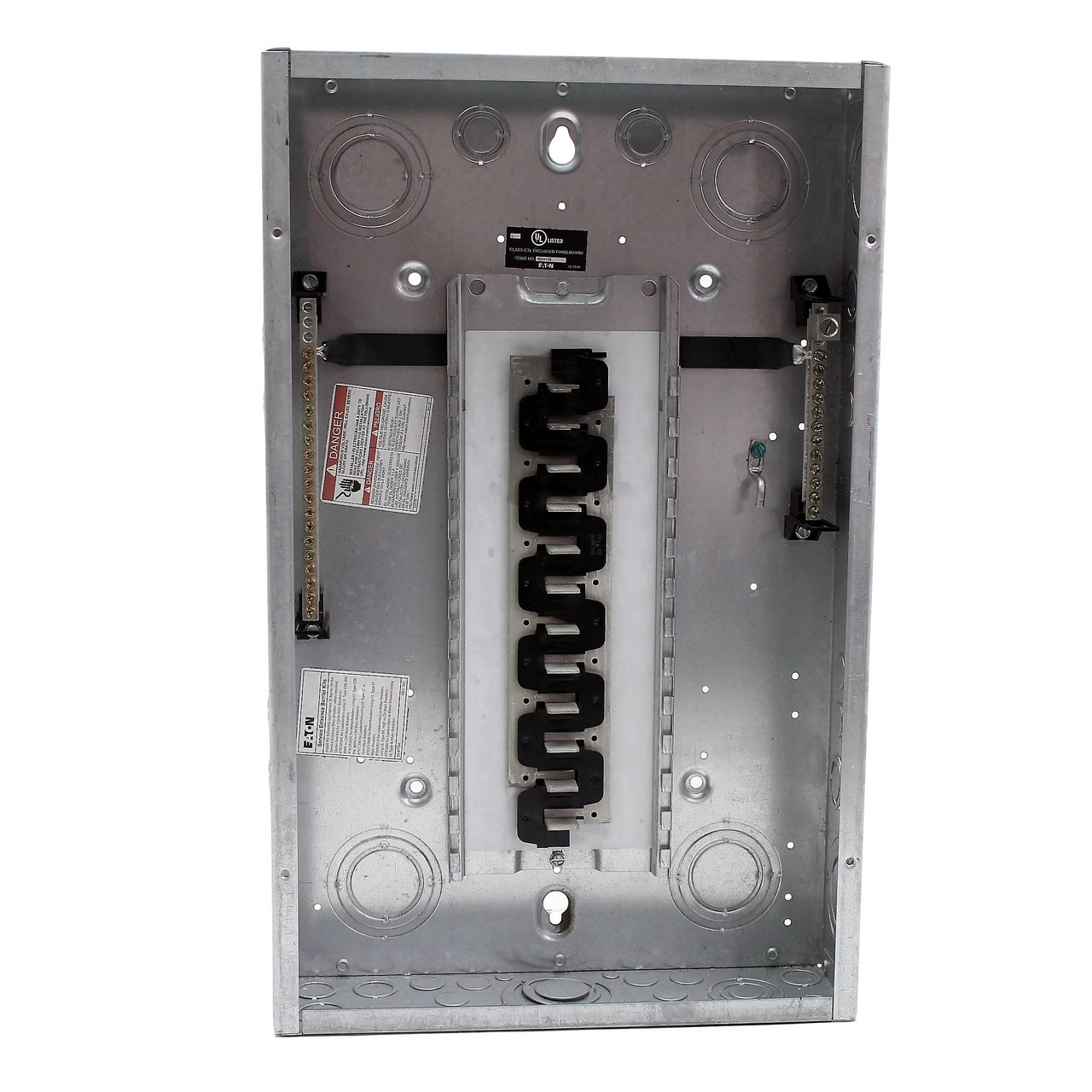

Eaton BR2020B100 Cutler-Hammer series 20-space indoor main breaker panel. Dirty with some corrosion and does not include main breaker, cover or screws. Features include:

100 Amp indoor main breaker panel: single phase, 3-wire, 120/240V missing 100A breaker
Interrupt rating: 10 kAIC
20 spaces (up to 20 circuits)
Wire size: #6-1/0 AWG Cu/Al
Uses BR type breakers
Dimensions: 23.00 in. high, 14.31 in. wide, 3.88 in. deep (measurements do not include covers/fronts)
Bus material: Aluminum
"Tangential" center knockout provides easier installation for conduit applications
Commercial grade main breaker
2/0 lug easily removable and can be installed in any location on the neutral bar
Neutral bus (strap) is easily removable for sub-panel applications
Bonding Z-strap provides easy field conversion for service entrance applications
Twin neutral bars provide minimum 150% neutral capacity
Steel back pan provides solid and reliable breaker mounting - single piece design for stability and durability
Single keyhole mounting - one keyhole at the top and bottom provides easier mounting and leveling

MPN:

BR2020B100

Cross Reference:

Not Available

Color:

Gray

Amperage:

100A

Condition:

New

UPC:

786676444255

Weight:

24.80 LBS
