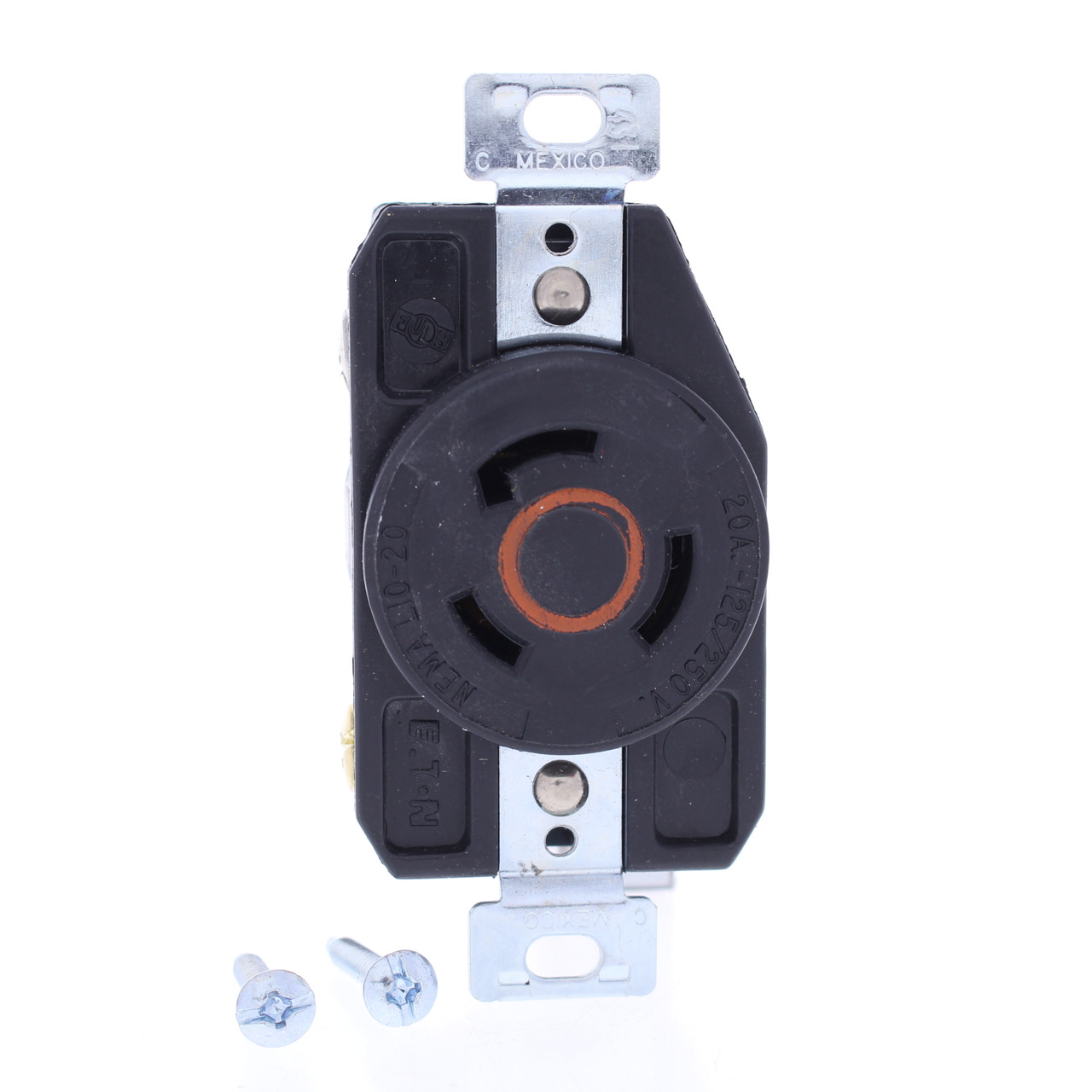

Eaton Locking Receptacle Twist Lock Outlet NEMA L10-20R 20A 125/250V AHL1020R

Your Price: $14.99

QTY Available to Ship:

Quantity:

Ask a question

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Product Description

Eaton AHCL1020R Hart-Lock locking receptacle. Industrial Specification Grade, NEMA L10-20R, 3-pole, 3-wire, non-grounding, rated 20A 125/250V. Each is individually packaged; packaging may differ from photo. Features include:

Rugged fiberglass reinforced, high temperature, nylon body reduces breakage
One-piece brass alloy contacts provide excellent plug retention and continuity in the grounding and power circuits - provides superior performance and minimum heat rise
Rugged heavy duty mounting strap - double riveted to body for added strength
Compact body design allows for adequate wire room in wallbox
Heavy interior walls provide additional support to insure contact retention
Back and side wired terminal design allows for fast installation - large 10-32 power contact screws assure easy, efficient installation
Serrated terminal plates bite wire to insure strong, reliable wiring connections
Combination head screws (slot/Phillips) for fast, easy installation

MPN:

AHCL1020R

Cross Reference:

Not Available

Color:

N/A

Amperage:

20A

Condition:

New

UPC:

032664758577

Weight:

0.30 LBS
