New Eaton Yellow Corrosion Resistant Twist Turn Locking Plug Connector NEMA L15-20R 20A 250V 3? L1520CY

Your Price: $18.99

QTY Available to Ship:

Quantity:

Ask a question

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Product Description

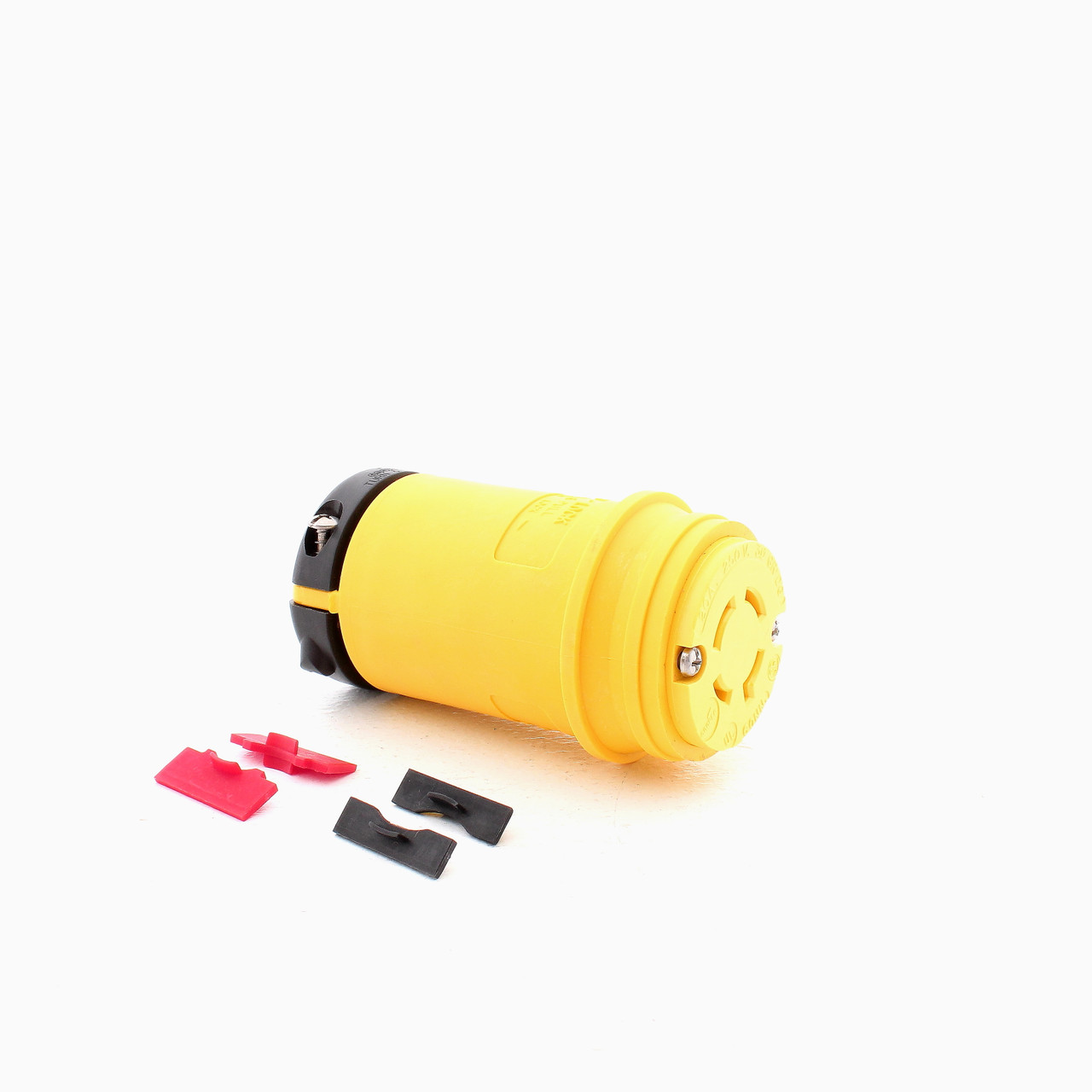

Eaton L1520CY yellow corrosion resistant locking connector. Made to resist impact, punishing application environments, chemicals and sunlight, resulting in superior performance and long-lasting reliability. Industrial Specification Grade, NEMA L15-20R, 3-pole, 4-wire, grounding, rated 20A 250V 3-Phase. Cord capacity: 0.63"-1.16". Each is individually packaged; packaging may differ from photo. Features include:

High-strength nylon construction stands up to severe job site abuse
All-brass terminal screws and clamps for low resistance conductor terminations
Serrated terminal plates and contoured terminal clamps "bite" on the conductors for positive termination
Heavy-duty safety grip external cord grip with fast-driving screws provides positive cord gripping and limits strain on conductors
Dust and moisture cord seal limits entry of contaminants into terminal compartment
Inserts included for three separate cord grip ranges
Back wire terminal clamps for easy secure wiring
Grooved housing for easy gripping and twisting
Clear terminal chambers allow visual inspection of terminals
Chamfered wire well for easy insertion of wire
Large, deep-slotted captive brass terminal screws

MPN:

L1520CY

Cross Reference:

Not Available

Color:

N/A

Amperage:

20A

Condition:

New

UPC:

040893643458

Weight:

0.70 LBS
