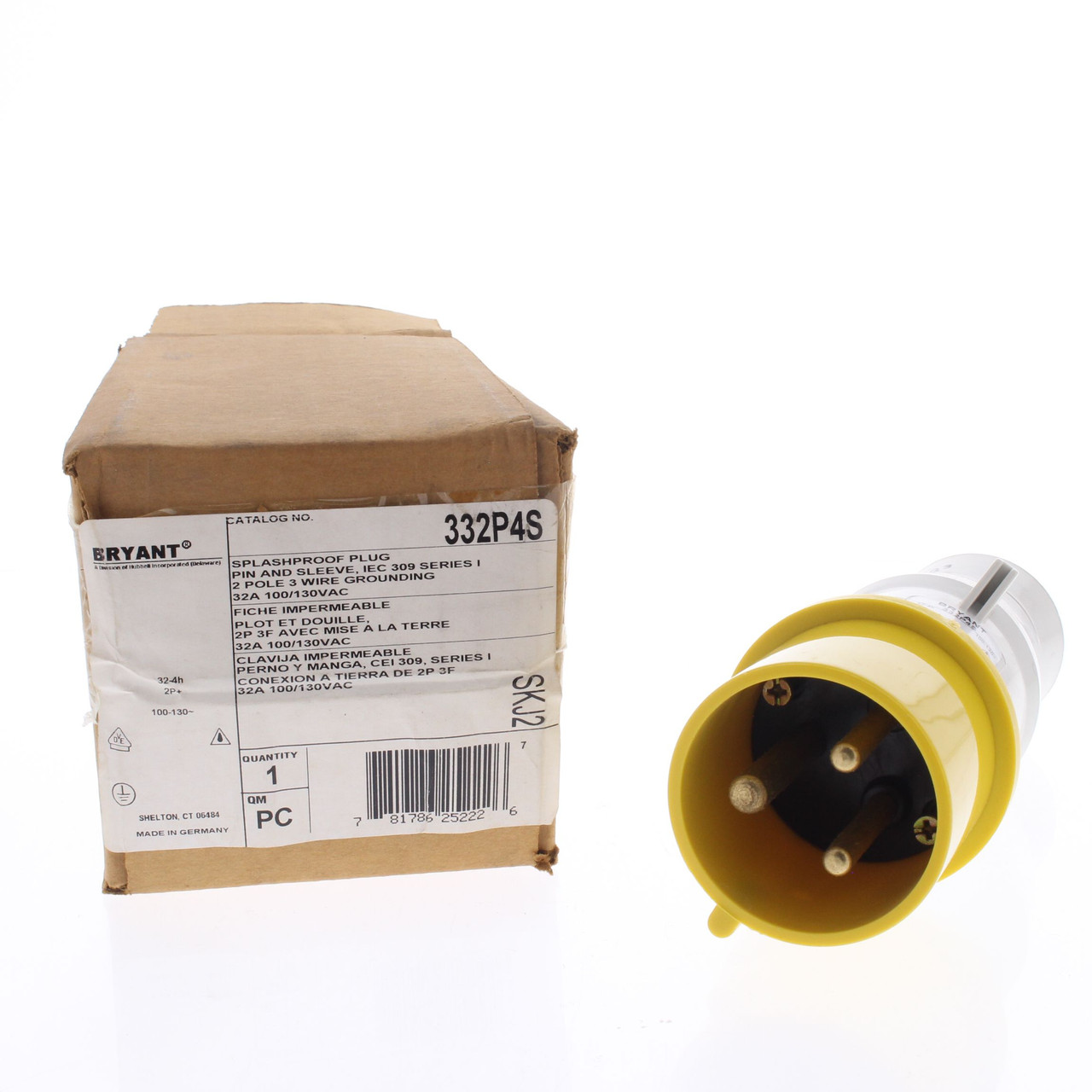

Hubbell Splashproof Male IEC 309 Pin & Sleeve Plug 32A 100-130V 2P3W 332P4S

Your Price: $69.99
QTY Available to Ship:
35

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.


Product Description

Hubbell 332P4S splashproof pin and sleeve plug (Bryant is a division of Hubbell). Industrial Grade, IEC 309, 2-pole, 3-wire, grounding, rated 32A 100-130V. Each is individually packaged; packaging may differ from photo. Features of Hubbell/Bryant's pin and sleeve plugs and connectors include:
  • Singly-rated, non-interchangeable configurations in accordance with IEC 309-1 and 309-2 standards. Prevents mismating of devices with different voltage ratings. Color coded for easy identification
  • Self-adjusting, slotted contact sleeve and nickel-plated spring steel contact pressure spring ease insertion of pins and provide consistent contact pressure
  • Pins are recessed in shrouded housing for protection from abuse
  • Pins and sleeves are fabricated from solid brass for longevity, contact reliability, and superior conductivity
  • Ground contact in forward position to ensure first make, last break. Neutral contact connects next, then phase contacts
  • Neoprene sealing glands seal out moisture and contaminants at cord entry and can accommodate a variety of cord diameters
  • Cord clamp screws fasten into threaded, plated steel nuts to prevent strip-out
  • Gland nut and ring compress sealing gland around cord to seal out contaminants. Provides supplemental strain relief
  • Insulated nylon housing resists impact, corrosion, and chemical attack
  • IP44 moisure resistance rating
  • Combination straight/Phillips head cord grip, terminal and assembly screws, and single side terminals simplify wiring
  • Manufactured for International Power Ratings (European); as a result they are not UL Listed or CSA Certified

MPN:
332P4S
Cross Reference:
Not Available
Color:
N/A
Amperage:
32A

Condition:
New
UPC:
781786252226
Weight:
0.75 LBS
