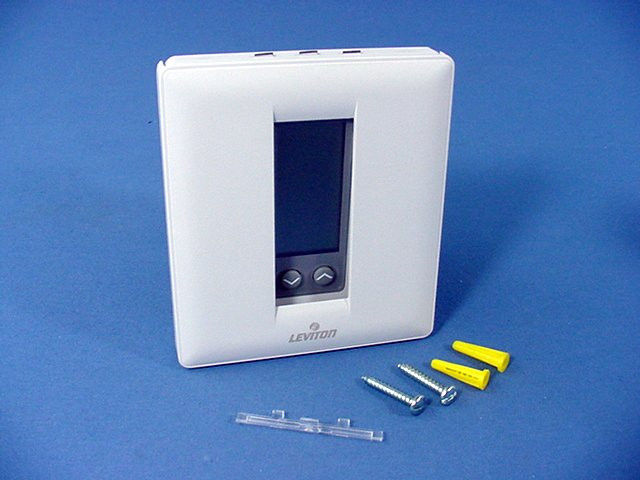

Leviton White Thermostat Control Heat Pump for Heating/Cooling System A/C 6327-2

Your Price: $26.25
QTY Available to Ship:
70



Product Description

Leviton 6327-2 white DHC (Decora Home Control) thermostat for a heat pump driven heating/cooling system. Designed to provide enhanced energy management and climate control capabilities in any residence or vacation home. This is not a timer; it is turned on and off by controllers or transponders in a home network (see below). Features include:
  • Intended for heat pump driven heating/cooling system only (not intended for non-heat pump driven systems)
  • Responds to commands from programmable controllers, manual controllers, or Leviton's DHC Telephone Transponder
  • Stores two heating temperatures settings and 1 cooling temperature setting selected by the user. For example, a ski lodge can be kept at 45 degrees to prevent pipes from freezing when unoccupied. Using a Cat. No. 6325 DHC Telephone Transponder, the owners can have the DHC thermostat switch to a temperature setting of 72 degrees so the lodge is warm and comfortable when they arrive for a weekend
  • Integrated into the home's DHC network using a Cat. No. 6337 Universal Low-Voltage Receiver Module (sold separately)
Specifications:
  • Voltage: 20-30 VAC, 24 nominal
  • AC current: 0.050-0.75 Amps continuous per output with surges to 3 Amps max
  • DC current: 0.0-0.75 Amps continuous per output with surges to 3 Amps max
  • Heating range: 38-88°F in 1° steps; 5-30°C in 1° steps
  • Cooling range: 60-108°F in 1° steps; 16-40°C in 1° steps
  • Thermostat measurement: 28-124°F or 0-48°C
  • ODT measurement: -50° to 24°F or -48° to 48°C
  • Control: +/- 0.5°C at 20°C
  • Accuracy: +/-1°F at 68°F

MPN:
6327-2
Cross Reference:
Not Available
Color:
White

Condition:
New
UPC:
078477940587
Weight:
0.56 LBS
