New Arrow Hart Twist Turn Locking Plug Connector Grounding Cord Cap NEMA L5-15R 15A 125V 4731

Your Price: $7.99

QTY Available to Ship:

Quantity:

Ask a question

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Product Description

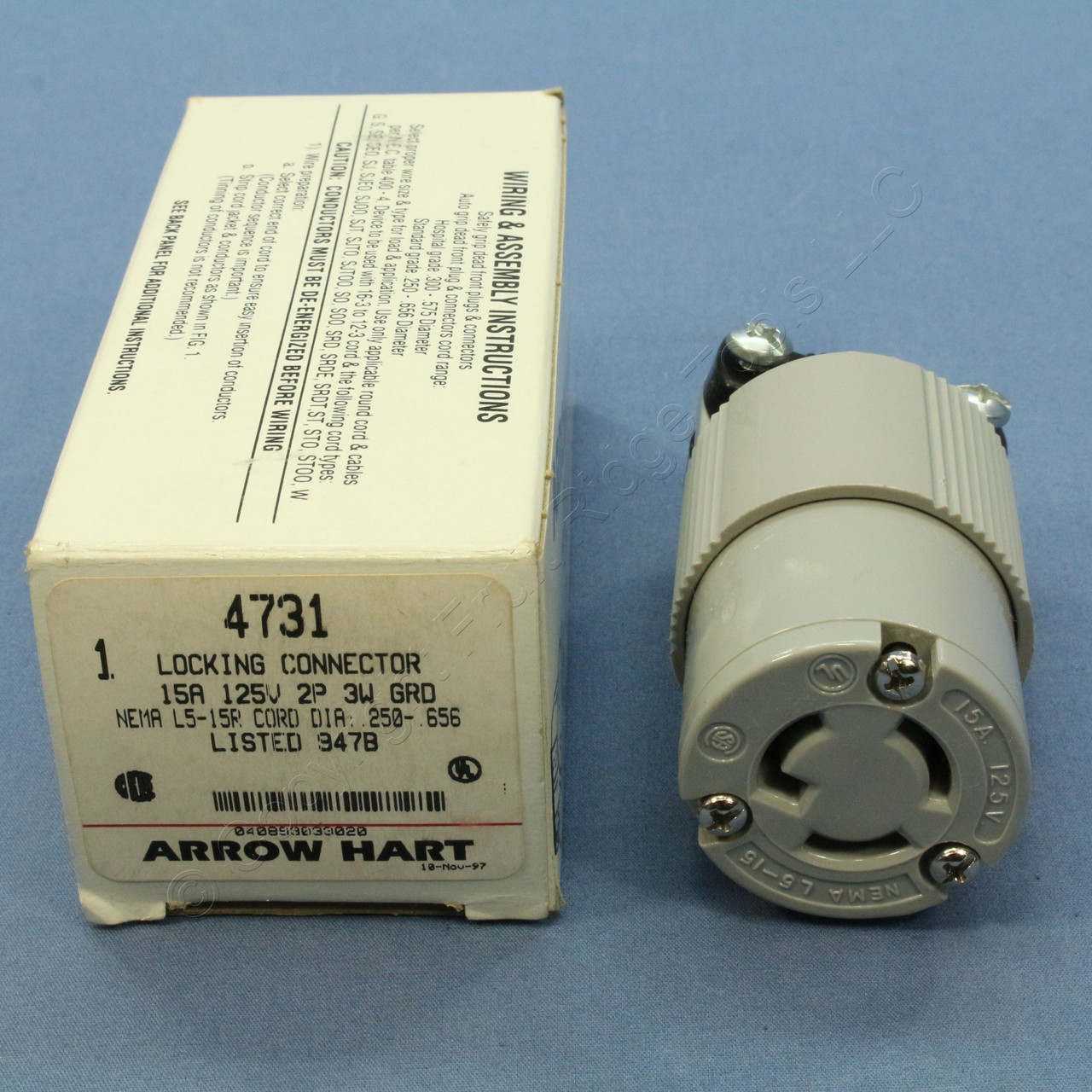

Arrow Hart 4731 locking connector. Industrial Specification Grade, NEMA L5-15R, 2-pole, 3-wire, grounding, rated 15A 125V. Cord grip range: .245"-.700". Terminals accomodate #18-#10 AWG. Each is individually packaged; packaging may differ from photo. Features include:

One-piece, rivetless, .035" thick brass contacts offer enlarged contact surface area, low heat, and long life
Cleat on contacts cuts oxidation when plug blade enter contact surface
Internal wiring chambers isolate individual conductors to prevent flashover, arcing, and stray strands of wire
Deep-funnelled, large rectangular-shaped chamfered wire wells guide conductors into termination position
Transparent wiring chambers provide a means of visual inspection of conductors and terminals
Wire clamps move within individual chambers to provide positive crimp lock without cutting wire strands
Captive terminal screws eliminate nuisance dropping and searching for missing screws
Positive crimp contact plate bundles stranded wire maximizing wire/clamp surface contact
Combination #10-32 deep slotted/ Phillips brass screws easily torque to 10-14 in.-lbs.
Super tough nylon body resists damage from severe impact, abrasion, and chemical attack
Wiring module keyed to body for easy assembly. Deep slotted/Phillips steel screws secure wiring module (12-14 in.-lbs.) to body
Ergonomically designed fluted body with radial gripping ridge creates an ideal surface for gripping, turning, and pulling
NEMA configuration, agency certifications, and device rating are molded on front of device to assist with identification
External cord clamp utilizes deep slotted/Phillips steel screws that are backed out and positioned inside shrouded pockets to prevent slippage of screwdriver blade when tightening cord clamp screws
