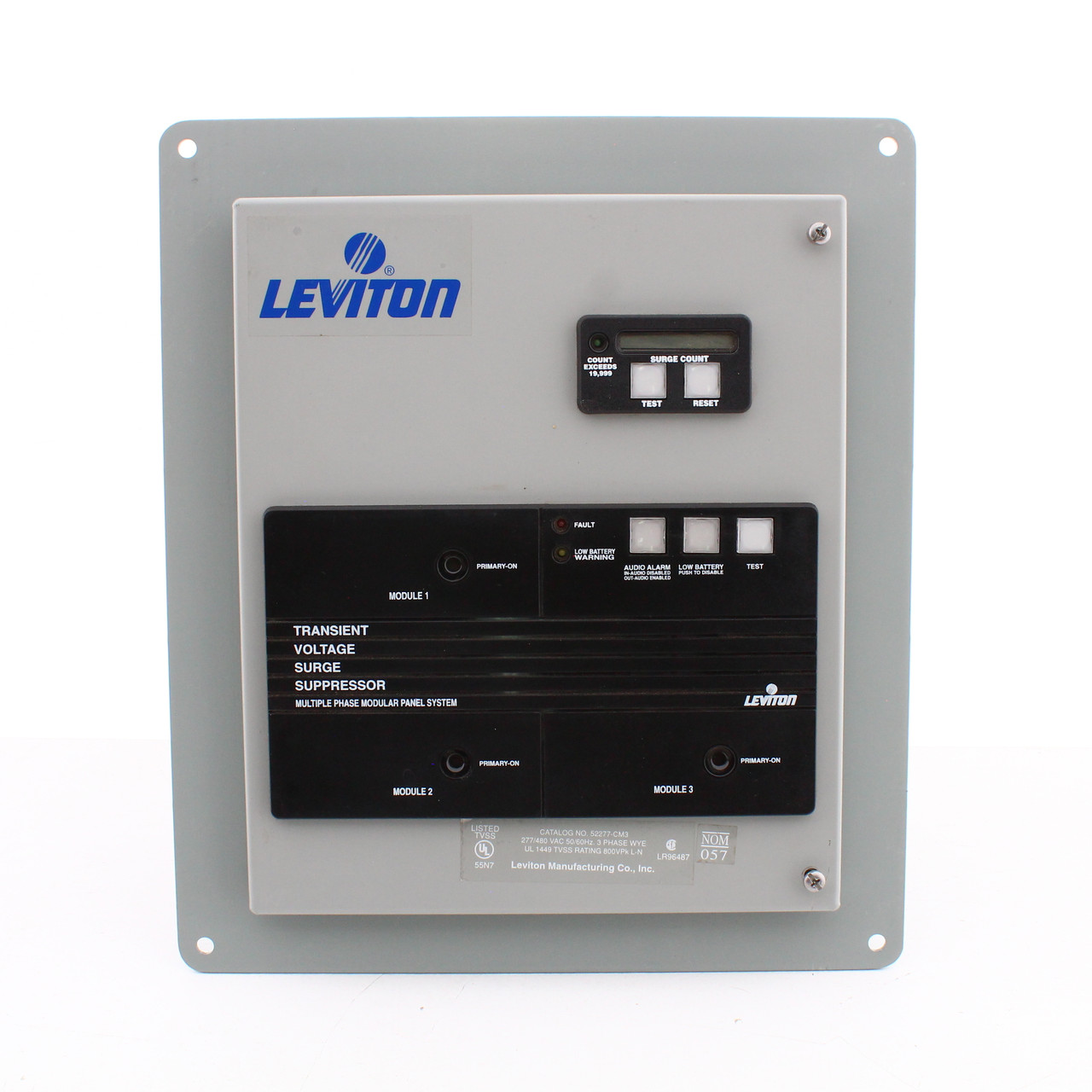

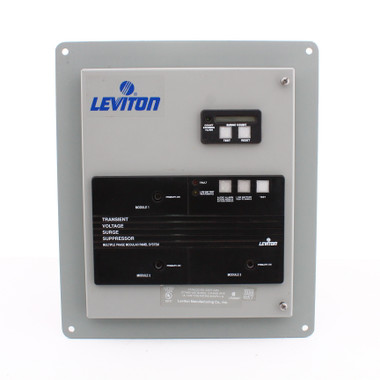

Leviton 52277-CM3 Type 12 Surge Panel 3-Phase 30A w/ Replaceable Surge Modules

Your Price: $949.99

QTY Available to Ship:

Quantity:

Ask a question

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Product Description

Features include:

Frequency : 50/60Hz
Recommended Circuit Breaker Rating : 30A, 277/480V
Surge Technology : 40mm MOV Design
Voltage Configuration : 277/480, V 3-Phase WYE
Parallel-hardwired, feed-through dual wire terminal block: Accepts up to #3 AWG wire
Includes surge counter
Module No. : (3) 2277 & (1) 8320-GN
Enclosure : Type 12
Flammability : Rated V-2 per UL 94
Operating Temperature : -20⁰C to 40⁰C
Relative Humidity : 5% to 95% non-condensing
Maximum Surge Current, Per Mode (Per Phase) : 100kA (200kA)
Noise Rejection : -20 to -40 dB at 5kHz-10MHz
Nominal Discharge Current Rating : 20kA
Protection Mode : 4-Mode
Remote Monitoring : Dry Contact Leads-N.O./N.C. Form C Rated at 7Amps @ 240VAC or 30 VDC

MPN:

52277-CM3

Cross Reference:

TE 04 XAS 20 E1 X, PTX-240-3Y201-SD, 120M-277Y, ZM15104X, 160M277/480Y, CGP100-277/480-3GY, PSPD-200-480Y-3-K, CGP100277/4803GY, PSPD-200-480Y-3-K, S2-200-277/480-Y-SC, HBL 8P120B, HBL8P120B, HBL-8P120B

Color:

Gray

Condition:

New
